How to deploy Streamlit apps to Google App Engine

December 14, 2021

Things to know

There are some things to know when you deploy Streamlit apps to App Engine.

The flexible environment is mandatory

You have to choose the flexible environment because it supports WebSockets and the standard environment does not. Streamlit heavily relies on WebSockets for the communication between the server and the client.

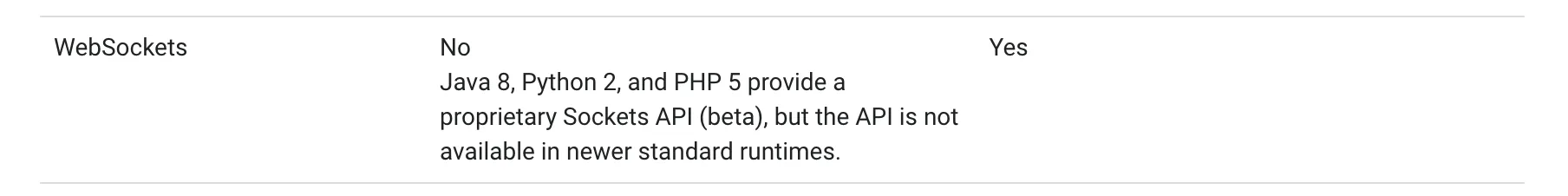

This is a screenshot of https://cloud.google.com/appengine/docs/the-appengine-environments on 2021/12/12. The left is about the standard env and the right is the flexible env.

Custom runtime is not necessary

You do not have to use a custom runtime (a customized Docker image). The flexible environment offers an official Python runtime as https://cloud.google.com/appengine/docs/flexible/python/runtime and you can use it.

Still, you can also use a custom runtime. For example, it is a nice option when you want to use a different Python version or when you already have a working Docker image.

NOTE: As of 2021/12/12, the document says the Python version on the built-in Python3 runtime is 3.7.2, but it is actually 3.6.10 known from sys.version at least in the asia-northeast1 zone (Tokyo). And Streamlit officially supports only Python>=3.7 while it is technically possible to be installed with Python 3.6, so maybe you should set up a custom runtime with Python>=3.7 following the section below.

The number of instances should be 1 if `st.file_uploader` or `st.download_button` is used

If your app contains st.file_uploader or st.download_button, you should set the maximum number of instances to 1. For that configuration, see https://cloud.google.com/appengine/docs/flexible/python/reference/app-yaml#services.

App Engine typically distributes the requests evenly among available instances so the file upload/download requests sometimes reach the instance different from the one where the session exists when there are multiple instances.

Errors as below appear in such cases.

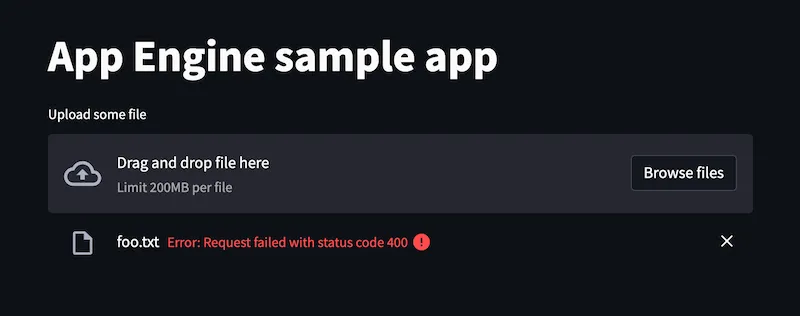

When an error occurs with file upload: The file upload request reaches a server where the session does not exist and the server returns the 400 error code.

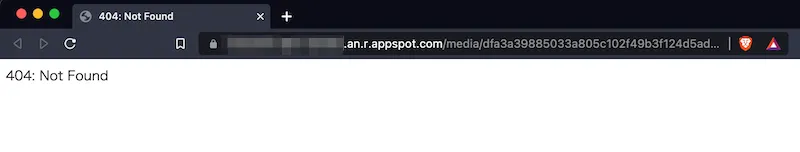

When an error occurs with file download: The file download request reaches a server where the session does not exist and the 404 response is returned.

This problem occurs with the file uploader/downloader components because they use normal stateless HTTP POST/GET requests while other components work on top of WebSocket connections consistent over sessions.

While I know this problem occurs at least with these components, I’m not sure whether there are other components that have this problem. I have not checked all.

NOTE: Restricting the number of instances to 1 has a drawback as it may cause some downtimes. As the document says, the flexible instances are restarted once a week, which leads to downtime when there are not multiple instances. While this problem has already been stated in the following posts, the only solution suggested was to set the minimum number of instances as more than one, although it conflicts with the solution explained in this article. I could not find a solution that covers both problems.

NOTE: App Engine offers the session affinity setting, but it does not help in this case because it is only for HTTP long polling like socket.io as documented though this problem is due to a different reason.

Recipes

I will show some examples deploying Streamlit apps to App Engine in different situations.

Each of them can be deployed with the command below.

$ gcloud app deploy

All sample resources are available at https://github.com/whitphx/streamlit-appengine-samples .

Basic setup

This is the simplest one.

No custom runtime
No config on the number of instances (scaling)
- This app is not using file uploader or downloader.

https://github.com/whitphx/streamlit-appengine-samples/tree/main/helloworld

File list

.
├── app.yaml
├── requirements.txt
└── streamlit-app.py

`app.yaml`

runtime: python
env: flex

runtime_config:
  python_version: 3

entrypoint: streamlit run streamlit-app.py --server.port $PORT

The flexible environment is selected.
The built-in Python3 runtime is used.
entrypoint is configured to run the Streamlit process with the specified port number via the $PORT environment variable.
- See https://cloud.google.com/appengine/docs/flexible/python/runtime#application_startup

`requirements.txt`

streamlit~=1.2.0

`streamlit-app.py`

import streamlit as st

st.title("App Engine sample app")

name = st.text_input("Your name?")

st.write(f"Hello, {name or 'world'}!")

File uploader and downloader

This is a sample with a file uploader and a downloader.

File list

.
├── app.yaml
├── requirements.txt
└── streamlit-app.py

`app.yaml`

runtime: python
env: flex

runtime_config:
  python_version: 3

entrypoint: streamlit run streamlit-app.py --server.port $PORT

automatic_scaling:
  max_num_instances: 1
# Or manual scaling as below:
# manual_scaling:
#   instances: 1

In addition to the basic set-up, automatic_scaling.max_num_instances is set to 1. If you want to use the manual scaling, use manual_scaling.instances instead.

For these settings, see https://cloud.google.com/appengine/docs/flexible/python/reference/app-yaml#services.

`requirements.txt`

streamlit~=1.2.0

`streamlit-app.py`

import streamlit as st

st.title("App Engine sample app")

uploaded_file = st.file_uploader("Upload some file")
if uploaded_file:
    st.write(f"{uploaded_file.name} was uploaded.")

    st.download_button(f"Download {uploaded_file.name}", data=uploaded_file, file_name=uploaded_file.name)

Custom runtime

This sample uses a custom runtime with Dockerfile.

Ref: https://cloud.google.com/appengine/docs/flexible/custom-runtimes/build

.
├── Dockerfile
├── app.yaml
├── requirements.txt
└── streamlit-app.py

`app.yaml`

runtime: custom
env: flex

Set runtime: custom to use a custom runtime.
entrypoint is not needed as it is defined in Dockerfile.

`Dockerfile`

FROM gcr.io/google-appengine/python

# Ref:
# * https://github.com/GoogleCloudPlatform/python-runtime/blob/8cdc91a88cd67501ee5190c934c786a7e91e13f1/README.md#kubernetes-engine--other-docker-hosts
# * https://github.com/GoogleCloudPlatform/python-runtime/blob/8cdc91a88cd67501ee5190c934c786a7e91e13f1/scripts/testdata/hello_world_golden/Dockerfile
RUN virtualenv /env -p python3.7

ENV VIRTUAL_ENV /env
ENV PATH /env/bin:$PATH

ADD requirements.txt /app/
RUN pip install -r requirements.txt

ADD . /app
ENTRYPOINT [ "streamlit", "run", "streamlit-app.py", "--server.port", "8080" ]

Use the base image officially provided by Google for App Engine, gcr.io/google-appengine/python.
- App Engine has a health checking mechanism and the official base image is already configured for it.
- See https://cloud.google.com/appengine/docs/flexible/python/customizing-the-python-runtime
Specify the Python version at virtualenv creation.
- Follow the README.md on GoogleCloudPlatform/python-runtime
Some Dockerfiles of the test data in that repository can be references
The main process has to listen to the port 8080 in a custom runtime.
- See https://cloud.google.com/appengine/docs/flexible/custom-runtimes/build#listening_to_port_8080

`requirements.txt`

streamlit~=1.2.0

`streamlit-app.py`

import sys

import streamlit as st


st.write(sys.version)
